Spike-in-RNA

Spike-in RNA Variant Control Mixes

Company:

The Only RNA Control designed for Splice
Variant Detection Consist of

  • transcript variants representing
  • Alternative splicing
  • Promoter and poly(A) site usage
  • Overlapping genes
  • Antisense transcription

Product Description

Spike-in controls are essential in RNA-Seq experiments to assess workflow and platform properties. However, existing external RNA controls are generally mono-exonic and non-variant, significantly limiting their ability to reflect the true nature of eukaryotic transcriptomes. These are characterized by extensive splicing, alternative and antisense transcription, overlapping genes, and rare events like the formation of fusion genes. The performance of RNA preparation, library generation, sequencing, and bioinformatics algorithms can furthermore not be assessed adequately without known transcript spike-in controls of representative complexity.
To address this gap, Lexogen has conceived Spike-In RNA Variants (SIRVs) for the quantification of mRNA isoforms in Next Generation Sequencing (NGS). The SIRVs are a set of 69 artificial transcript variants which mimic 7 human model genes. They are complemented by additional isoforms to comprehensively reflect variations of alternative splicing, alternative transcription start- and end-sites, overlapping genes, and antisense transcripts. The accuracy of mapping, isoform assembly and quantification can be assessed, making isoform-quantification based experiments comparable.

Validate your RNA-Seq quantification pipeline and its annotation-robustness

The a priori knowledge of SIRV transcript sequences and concentrations allows to assess the isoform-specific performance of an RNA-Seq experiment. In addition to the correct annotation of the SIRVs, one insufficient and one over-annotation are supplied to enable the testing of NGS data evaluation algorithms for their robustness towards “real life”, imperfect annotations

3 SIRV mixes for differential expression

The SIRVs are provided as a set of 3 SIRV mixes, E0, E1, and E2, with each mix containing all 69 SIRVs but in different concentration ratios. E0 contains the RNAs in equimolar ratio, E1 covers one order of magnitude (up to 1:8) and in E2 SIRV concentration range over more than two orders of magnitude (up to 1:128). The comparison of samples spiked with these different mixes enables the quantitative assessment of differential expression workflows on the transcript level.

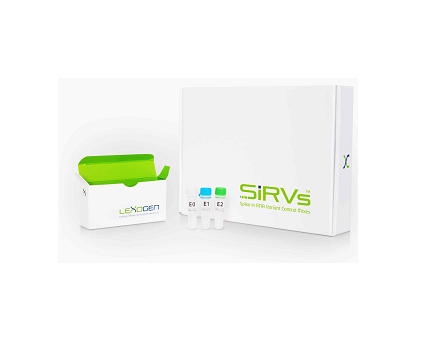

Product Composition

The SIRVs are provided as three mixtures containing the 69 transcripts of the 7 SIRV genes in different concentrations.

Performance

High complexity

The SIRVs are designed to cover 7 synthetic genes, modeled on human counterparts, with up to 18 transcript variants each representing alternative splicing, differential promoter and poly(A) site usage, overlapping genes and antisense transcription. Natural occurring, annotated variants were supplemented by rational designed ones to enhance complexity and comprehensively cover splicing and transcription variation aspects in all 7 SIRV genes. The SIRVs are provided as three mixes, with molar ratios of the SIRV RNAs differing up to two orders of magnitudes

Platform independent

The SIRVs can be analyzed with any RNA-Seq protocol starting from cell extracts or purified RNA and on any NGS platform (Illumina, Life Technologies, PacBio, Oxford Nanopore …). Since the SIRV RNAs are polyadenylated, library preparation can start from poly(A) selected fractions as well as from total RNA, depleted RNA, etc. The SIRV mixes are also suitable for quantification on microarray platforms and in qPCR assays.

3 SIRV mixes for differential expression

The SIRVs are provided as a set of 3 SIRV mixes, E0, E1, and E2, with each mix containing all 69 SIRVs but in different concentration ratios. E0 contains the RNAs in equimolar ratio, E1 covers one order of magnitude (up to 1:8) and in E2 SIRV concentration range over more than two orders of magnitude (up to 1:128). The comparison of samples spiked with these different mixes enables the quantitative assessment of differential expression workflows on the transcript level.

FAQs

1. How are the SIRVs designed?
2. What are the properties of the SIRV transcripts’ terminal sequences?
3. How are the SIRVs produced?
4. What are the concentrations of the SIRVs?
5. Why are the SIRVs provided as 3 mixes?
6. How do I spike-in the SIRVs?
7. Which RNA and library preparation methods can be used with the SIRVs?
8. How long are the SIRVs?
9. What is the difference between the ERCCs and the SIRVs?
10. How many samples can I spike-in with the SIRV Mixes?

Ordering Information

Kit Reactions Cat.No.
Spike-in RNA Variant Control Mixes 3 rxn 025.03

Download

SIRVs Spike-in RNA Variant Control Mixes

User Guide – update 10.09.2015 (Information about dilution added.)
Amendment (batch No 216652830)
Application Note

SIRV annotations

SIRV_Sequences_151124 (ZIP) (for batch No 216652830)
(containing SIRV_151124a.fasta, SIRV_I_151124a.gtf, SIRV_C_151124a.gtf, and SIRV_O_151124a.gtf; accounting for SIRV502)

SIRV_Sequences_150601 (ZIP)
(containing SIRV_150601a.fasta, SIRV_I_150601a.gtf, SIRV_C_150601a.gtf, and SIRV_O_150601a.gtf)

SIRV Mixes – concentrations and sequence feature

SIRV sequence design overview (XLSX) (for batch No 216652830)
(SIRVs design overview containing assignments to the three annotations, length, molar weight, RNA integrity, molarity in mixes, GC content, number of exons, counts of splice events, orientation and complete sequences; version 1.2)

Material Safety Datasheets

MSDS Information for SIRVs

Certificate of Analysis

Certificate of Analysis (batch No 216652830)
